THEAM Ontario

Series 3500

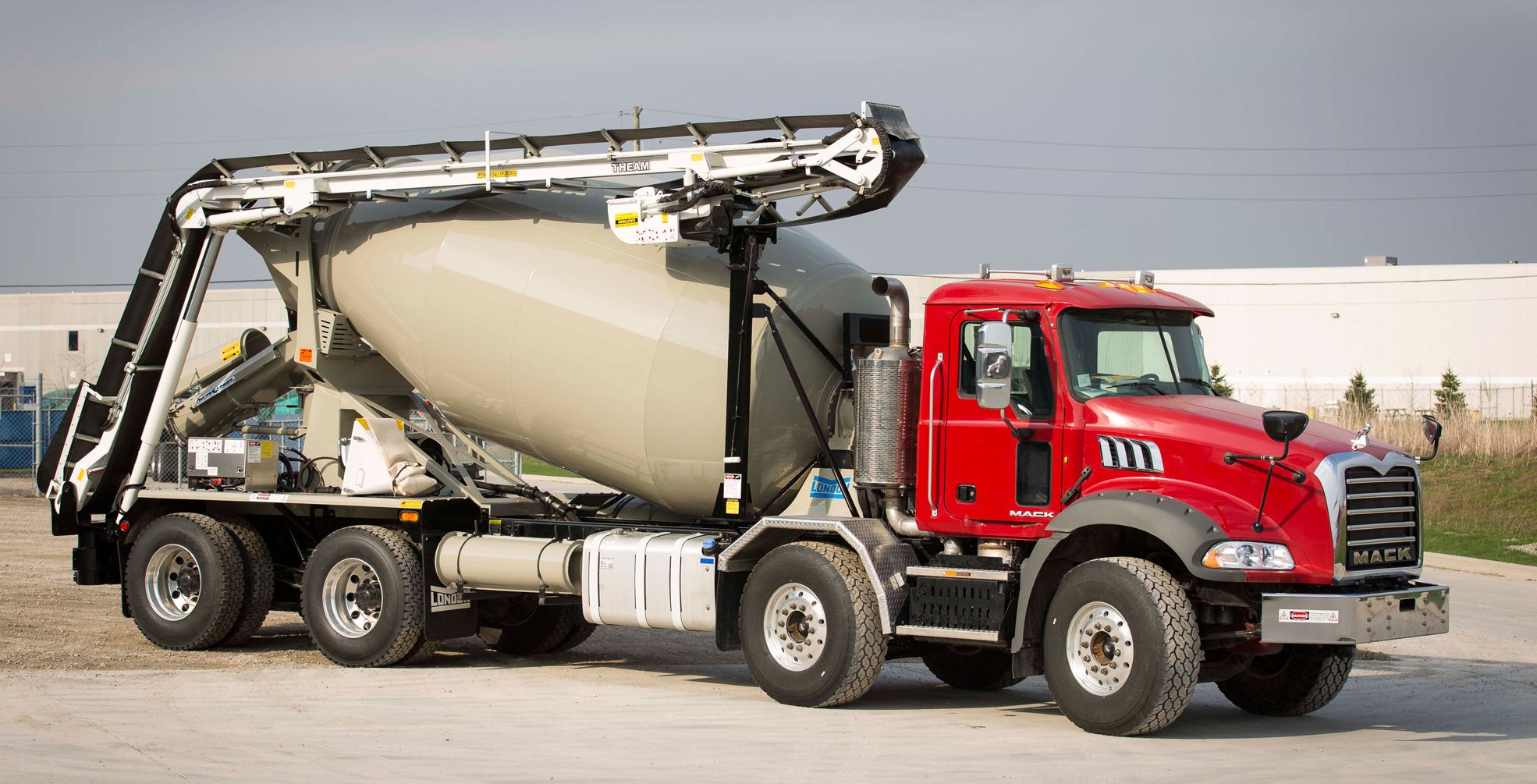

A large truck with a cement mixer attached to it.

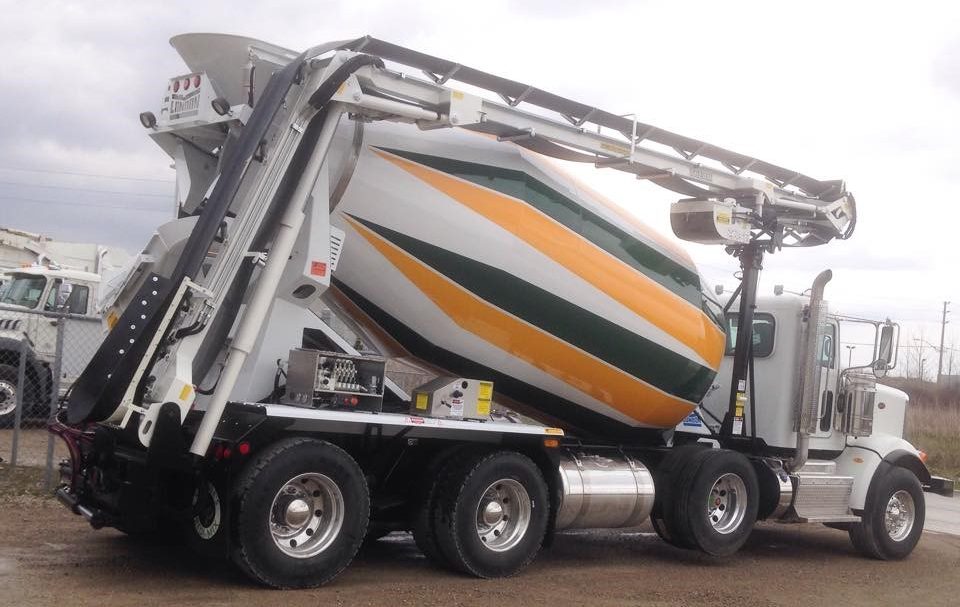

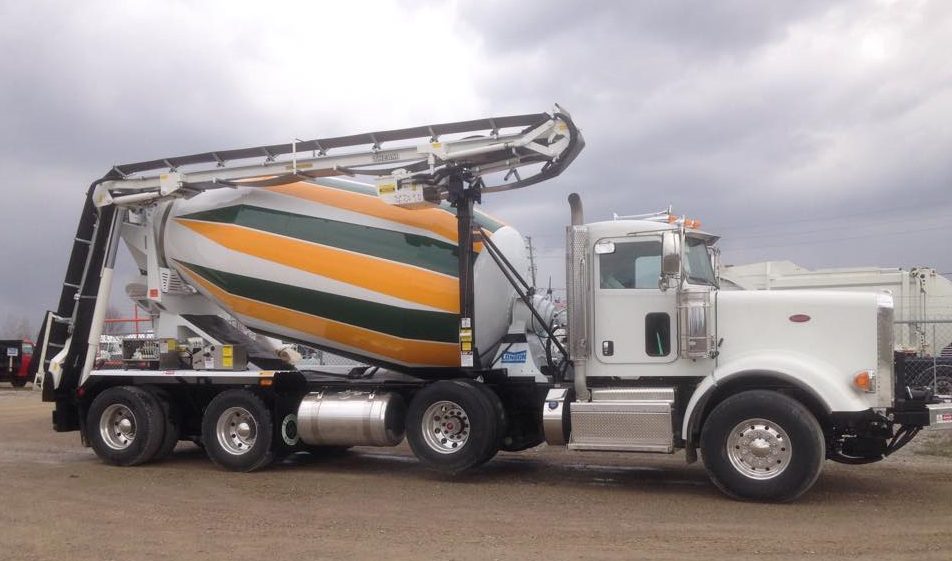

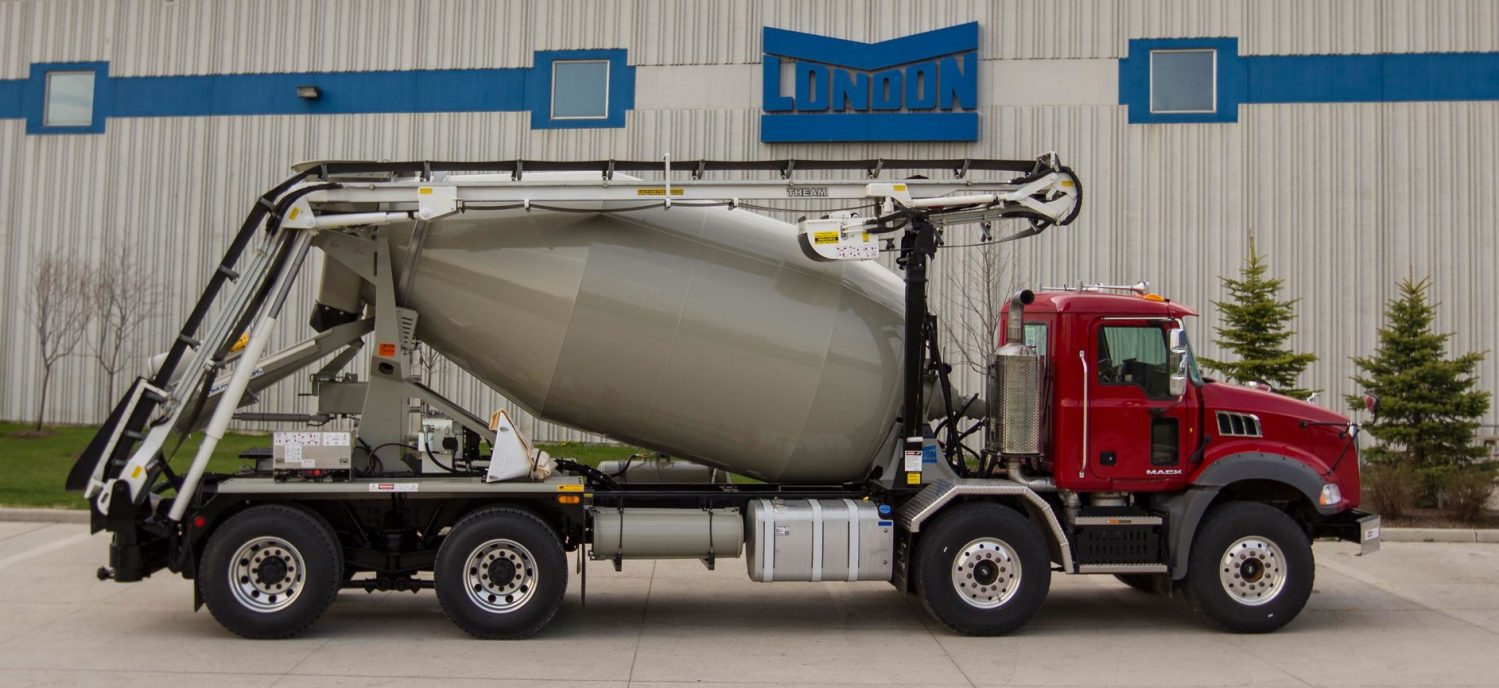

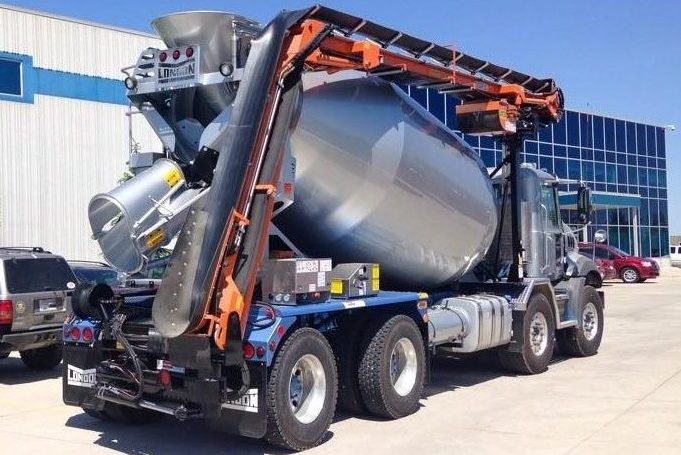

42–Ontario MEET THE CANADIAN CONFIGURATION IN THE LINE UP. This conveyor is a 42S designed to optimize placing for the wheelbase and twin steering axle trucks common in the region.

Product Specs

Maximum Discharge Reach42ft

Maximum Discharge Height25ft

Telescopic Rangeft

Maximum Rotation320º

Maximum Discharge Rate85cu yds/hr

Maximum Operation Pressure2700psi

Belt Speed, Variable0-9ft/sec

Belt Support SystemIdler Rollers

Total Weight on Truck3600lbs
