THEAM TLS/DT

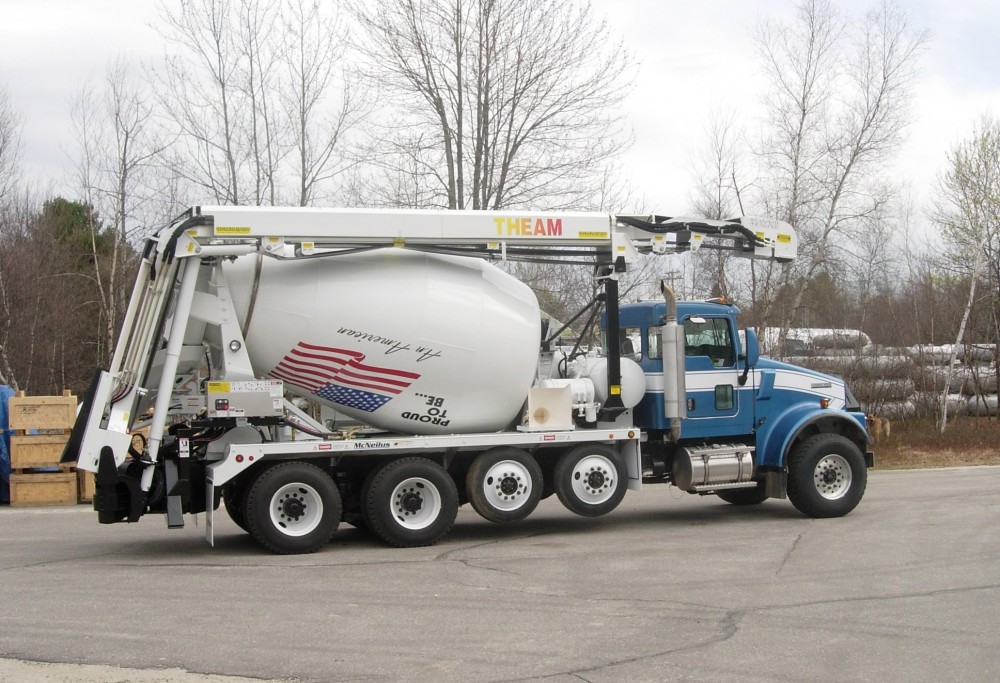

Series 6500 A cement truck with an american flag on it.

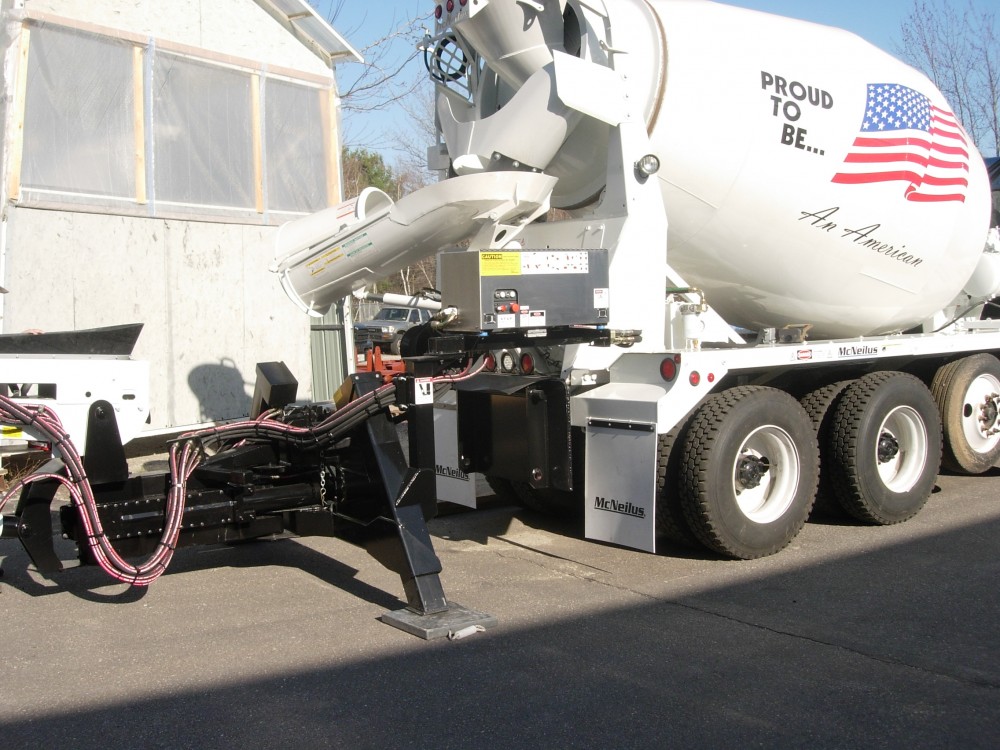

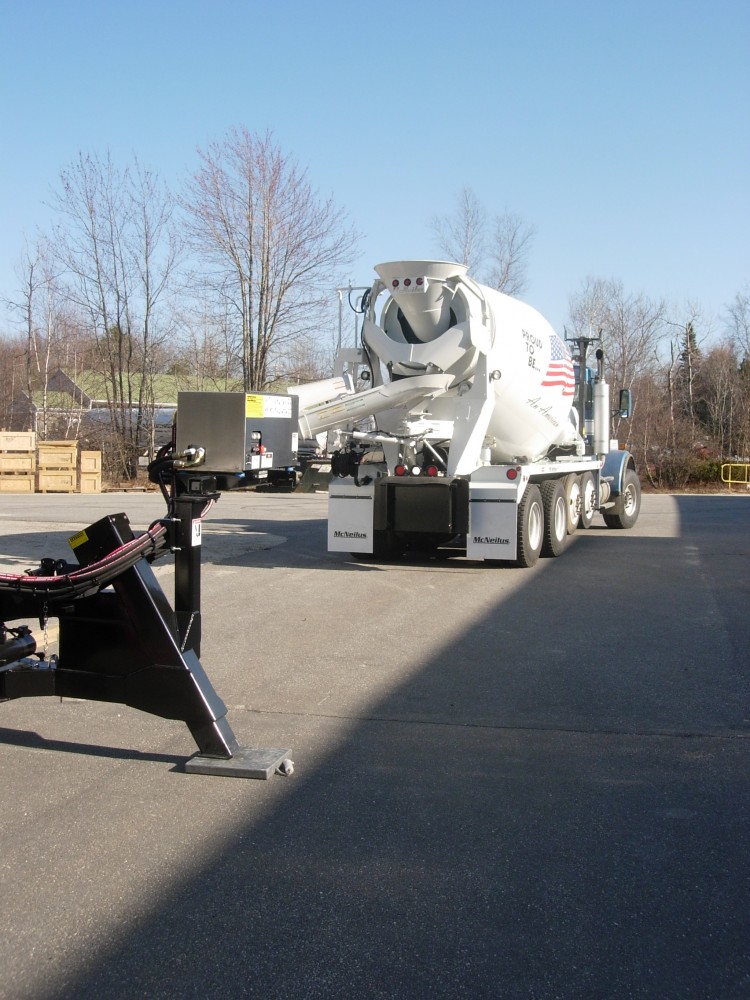

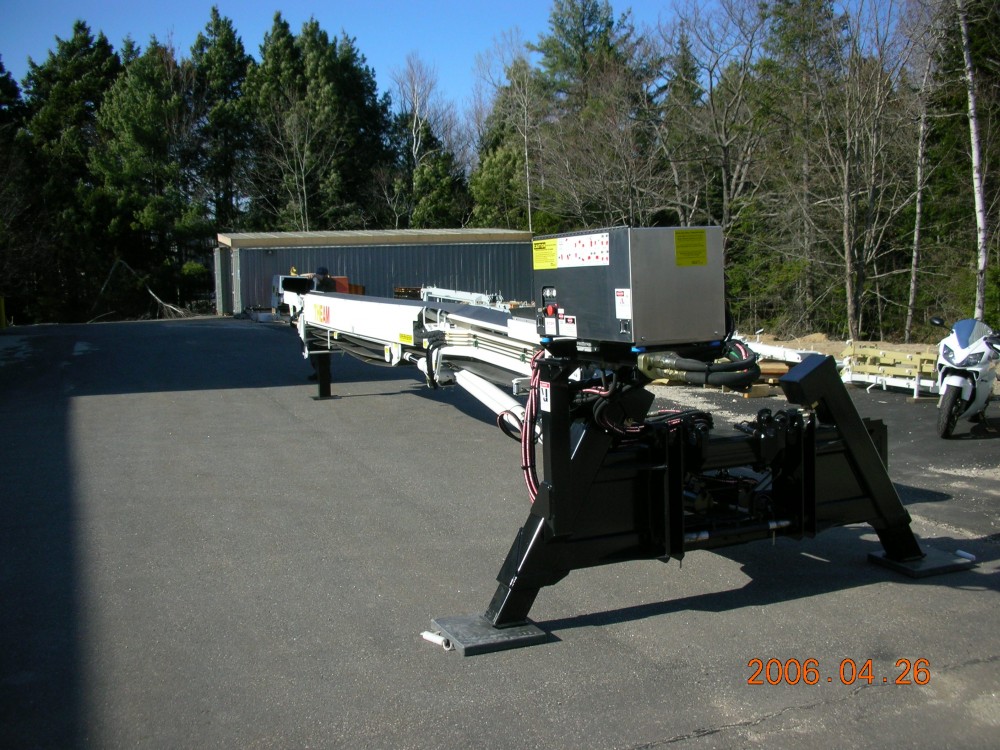

TLS/DTdetachable MEET THE MOST VERSATILE OPTION IN THE LINEUP. This conveyor offers a use it or park it feature, it’s (D) detachable. This conveyor was introduced originally to accommodate drivers who owned their own mixer trucks. If the job required placing, they had the placing capacity. If the job was pouring into a pump or simply hauling, the conveyor could be removed to not penalize pay-load. Conveyors are in constant demand but this feature may be a good choice for particular jobs or operations.


Product Specs

Maximum Discharge Reach52ft

Maximum Discharge Height30ft

Telescopic Range35-52ft

Maximum Rotation320º

Maximum Discharge Rate85cu yds/hr

Maximum Operation Pressure3000psi

Belt Speed, Variable0-9ft/sec

Belt Support SystemSliders

Total Weight on Truck6600lbs
